Excel to Pandas (Zillow) — Instructor solutions

# Import necessary libraries
import sys
from pathlib import Path

# Install ipywidgets into this kernel — do NOT use bare `pip install` here (NameError: pip is not defined)
import subprocess
subprocess.run([sys.executable, "-m", "pip", "install", "-q", "ipywidgets"], check=False)

# Local module interact.py lives next to this notebook — add it to path when cwd differs
# (e.g. JupyterHub/cloud kernels often start in /tmp or home, not this folder)
for _p in (Path.cwd(), Path.cwd() / "excel_to_pandas_zillow"):
    if (_p / "interact.py").exists():
        sys.path.insert(0, str(_p.resolve()))
        break

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
import seaborn as sns
from IPython.display import display, HTML, Markdown
from interact import (
    explore_data_widget,
    filter_markets_widget,
    pivot_table_widget,
    metro_trends_widget,
)
import warnings
warnings.filterwarnings('ignore')

# Set plot style
plt.style.use('seaborn-v0_8-darkgrid')
sns.set_palette("husl")

print("✅ All libraries imported successfully!")
print("\n📌 Note: This notebook uses interactive widgets (ipywidgets)")
print("   You'll see dropdowns and sliders throughout — just run each cell and use the controls!")

# URLs from https://www.zillow.com/research/data/
zhvi_URL = (
    "https://files.zillowstatic.com/research/public_csvs/zhvi/"
    "Metro_zhvi_uc_sfrcondo_tier_0.33_0.67_sm_sa_month.csv"
)
zori_URL = (
    "https://files.zillowstatic.com/research/public_csvs/zori/"
    "Metro_zori_uc_sfrcondomfr_sm_month.csv"
)

print("⏳ Downloading home value data (ZHVI) from Zillow Research...")
home_values_wide = pd.read_csv(zhvi_URL)
print(f"✅ Home values loaded: {home_values_wide.shape[0]} metro areas × {home_values_wide.shape[1]} columns")

print("\n⏳ Downloading rent data (ZORI) from Zillow Research...")
rent_values_wide = pd.read_csv(zori_URL)
print(f"✅ Rent values loaded: {rent_values_wide.shape[0]} metro areas × {rent_values_wide.shape[1]} columns")

# Let's look at what the raw home value data looks like
print("Raw home value data (first 5 rows, first 10 columns):")
display(home_values_wide.iloc[:5, :10])

print("\n📌 Notice the structure:")
print("  • Each ROW = one metro area (e.g., 'Los Angeles, CA')")
print("  • Each COLUMN after StateName = a monthly date (e.g., '2000-01-31')")
print("  • Each VALUE = the typical home value in $ for that metro + month")
print(f"\n  Total date columns: {home_values_wide.shape[1] - 5}")

# Identify the metadata columns (non-date columns)
meta_cols = ['RegionID', 'SizeRank', 'RegionName', 'RegionType', 'StateName']

# Identify the date columns (everything else)
date_cols = [c for c in home_values_wide.columns if c not in meta_cols]

print(f"Metadata columns: {meta_cols}")
print(f"Number of date columns: {len(date_cols)}")
print(f"Date range: {date_cols[0]} → {date_cols[-1]}")

home_values = pd.melt(
    home_values_wide,
    id_vars=meta_cols,        # columns to KEEP as-is
    value_vars=date_cols,     # columns to UNPIVOT into rows
    var_name='Date',          # name for the new 'column header' column
    value_name='HomeValue'    # name for the new 'value' column
)

# Convert Date string to an actual datetime object
home_values['Date'] = pd.to_datetime(home_values['Date'])

# Drop rows where HomeValue is missing (some early months have no data)
home_values = home_values.dropna(subset=['HomeValue'])

print(f"\n✅ Reshaped to long format: {home_values.shape[0]:,} rows × {home_values.shape[1]} columns")
print("\nFirst 5 rows of long-format data:")
display(home_values.head())

# Backwards-compatible alias used elsewhere in the notebook
home_values = home_values

# Do the same for rent_values (rent data)
rent_meta_cols = ['RegionID', 'SizeRank', 'RegionName', 'RegionType', 'StateName']
rent_date_cols = [c for c in rent_values_wide.columns if c not in rent_meta_cols]

rent_values = pd.melt(
    rent_values_wide,
    id_vars=rent_meta_cols,
    value_vars=rent_date_cols,
    var_name='Date',
    value_name='Rent'
)
rent_values['Date'] = pd.to_datetime(rent_values['Date'])
rent_values = rent_values.dropna(subset=['Rent'])

print(f"✅ rent_values long format (rent values): {rent_values.shape[0]:,} rows × {rent_values.shape[1]} columns")
display(rent_values.head())

# Interactive widget to explore different inspection methods
explore_data_widget(home_values)

# Find the most recent date in the dataset
latest_date = home_values['Date'].max()
print(f"Most recent month in dataset: {latest_date.strftime('%B %Y')}")

# Create a dictionary mapping RegionName → latest HomeValue
# This is like building a lookup table in Excel
latest_values = (
    home_values[home_values['Date'] == latest_date]
    .set_index('RegionName')['HomeValue']
    .to_dict()
)

print(f"\nSample entries from our lookup dictionary:")
sample_keys = list(latest_values.keys())[:5]
for k in sample_keys:
    print(f"  {k}: ${latest_values[k]:,.0f}")

# Now apply it to the full dataset using map()
# Excel equivalent: =VLOOKUP(A2, LookupTable, 2, FALSE)
latest_home_values = home_values[home_values['Date'] == latest_date].copy()
latest_home_values['NationalRank'] = latest_home_values['SizeRank']

# Backwards-compatible name used elsewhere in the notebook
home_values_latest = latest_home_values

print("\nUsing map() to rank markets by size:")
display(latest_home_values[['RegionName', 'StateName', 'HomeValue', 'NationalRank']]
        .sort_values('NationalRank')
        .head(10))

latest_rent_values = rent_values[rent_values['Date'] == rent_values['Date'].max()][['RegionName', 'Rent']]
latest_home_snapshot = home_values[home_values['Date'] == latest_date][['RegionName', 'StateName', 'HomeValue', 'SizeRank']]

# This is like doing =VLOOKUP(RegionName, rent_valuesTable, RentColumn, FALSE)
# but getting ALL columns from the rent table at once
housing = latest_home_snapshot.merge(
    latest_rent_values,
    on='RegionName',
    how='left'  # Keep all metros from the home value table, fill NaN if no rent data
)

print(f"Merged dataset shape: {housing.shape}")
print("\nHousing data with home values AND rents:")
display(housing.dropna().sort_values('SizeRank').head(10))

ca_metros = latest_home_values[latest_home_values['StateName'] == 'CA']

print(f"California metros: {len(ca_metros)}")
display(ca_metros[['RegionName', 'HomeValue']].sort_values('HomeValue', ascending=False))

expensive_ca = latest_home_values[
    (latest_home_values['StateName'] == 'CA') &
    (latest_home_values['HomeValue'] > 800_000)
]
print("CA metros with home values > $800K:")
display(expensive_ca[['RegionName', 'HomeValue']].sort_values('HomeValue', ascending=False))

tx_fl = latest_home_values[
    (latest_home_values['StateName'] == 'TX') |
    (latest_home_values['StateName'] == 'FL')
]
print(f"\nTX or FL metros: {len(tx_fl)}")
display(tx_fl[['RegionName', 'StateName', 'HomeValue']].sort_values('HomeValue', ascending=False).head(10))

# Interactive Filter Widget
filter_markets_widget(latest_home_values)

ca_avg = latest_home_values[latest_home_values['StateName'] == 'CA']['HomeValue'].mean()
print(f"Average home value in CA: ${ca_avg:,.0f}")

print("\nNumber of metro areas per state (like COUNTIF):")
metros_per_state = latest_home_values['StateName'].value_counts()
display(metros_per_state.head(10))

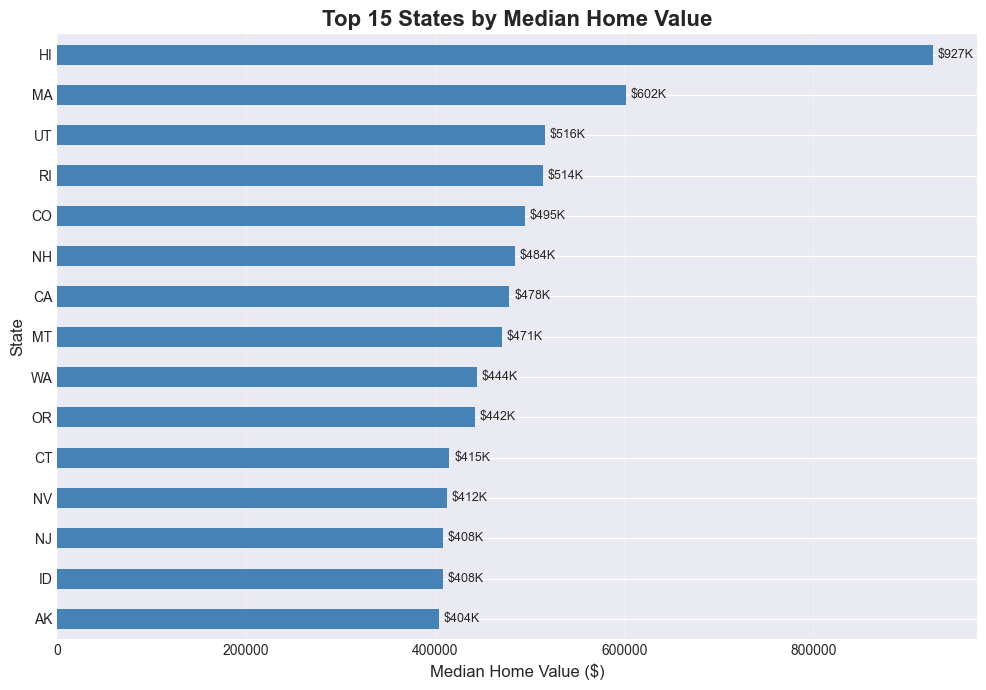

state_summary = latest_home_values.groupby('StateName')['HomeValue'].agg(
    Median_Home_Value='median',
    Mean_Home_Value='mean',
    Num_Metros='count',
    Max_Home_Value='max'
).round(0).sort_values('Median_Home_Value', ascending=False)

print("Home value statistics by state (top 10 most expensive):")
display(state_summary.head(10))

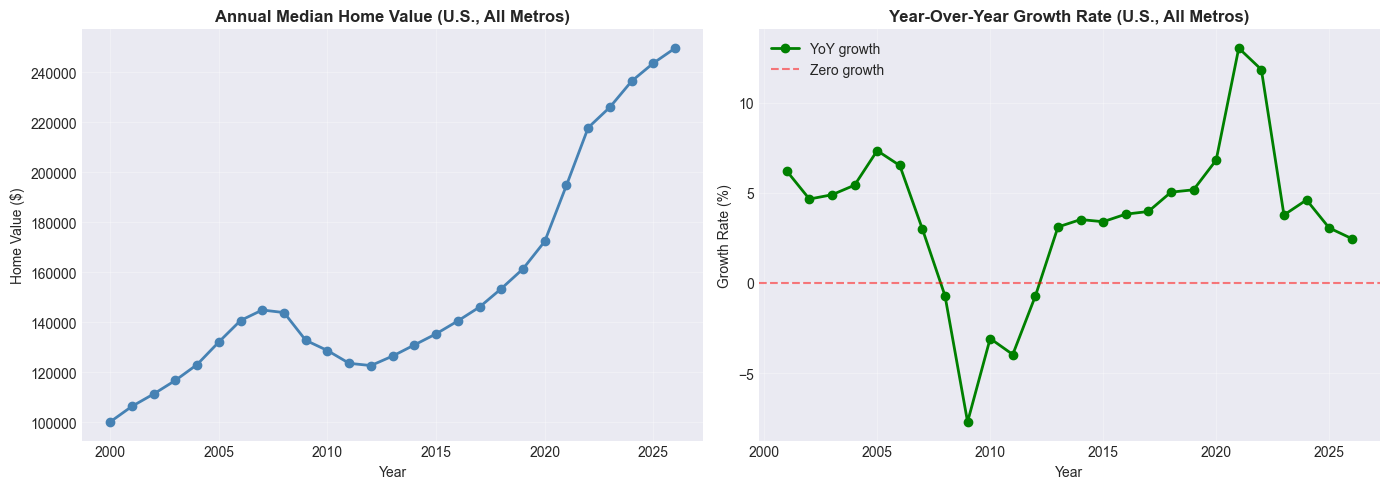

home_values['Year'] = home_values['Date'].dt.year

annual_avg = home_values.groupby('Year')['HomeValue'].median().round(0)

print("Median US home value by year:")
display(annual_avg.tail(10))

print(f"\n📈 Home values from {annual_avg.index[0]} to {annual_avg.index[-1]}:")
print(f"   ${annual_avg.iloc[0]:,.0f} → ${annual_avg.iloc[-1]:,.0f}")
print(f"   Total increase: {((annual_avg.iloc[-1] / annual_avg.iloc[0]) - 1) * 100:.0f}%")

latest_home_values_copy = home_values_latest.copy()
latest_home_values_copy['Affordability'] = np.where(
    latest_home_values_copy['HomeValue'] > 500_000,
    'Expensive',
    'Affordable'
)

print("Markets classified by affordability:")
display(latest_home_values_copy[['RegionName', 'StateName', 'HomeValue', 'Affordability']]
        .sort_values('HomeValue', ascending=False)
        .head(10))

print("\nCounts:")
print(latest_home_values_copy['Affordability'].value_counts())

def classify_market(home_value):
    if home_value > 1_000_000:
        return 'Ultra-Luxury'
    elif home_value > 600_000:
        return 'Luxury'
    elif home_value > 400_000:
        return 'Mid-Range'
    else:
        return 'Affordable'

latest_home_values_copy['MarketTier'] = latest_home_values_copy['HomeValue'].apply(classify_market)

print("Market tier distribution:")
print(latest_home_values_copy['MarketTier'].value_counts())

print("\nSample of each tier:")
# Sort by rank first, then take top 2 per tier (robust across pandas versions)
sample_each_tier = (
    latest_home_values_copy
    .sort_values('SizeRank')
    .groupby('MarketTier', group_keys=False)
    .head(2)
    [['RegionName', 'StateName', 'HomeValue', 'MarketTier']]
    .reset_index(drop=True)
)
display(sample_each_tier)

conditions = [
    latest_home_values_copy['HomeValue'] > 1_000_000,
    latest_home_values_copy['HomeValue'] > 600_000,
    latest_home_values_copy['HomeValue'] > 400_000,
]
choices = ['Ultra-Luxury', 'Luxury', 'Mid-Range']

latest_home_values_copy['MarketTier_v2'] = np.select(conditions, choices, default='Affordable')

print("Using np.select() — same result, cleaner code for many conditions:")
print(latest_home_values_copy['MarketTier_v2'].value_counts())

home_values_pivot = latest_home_values_copy.copy()

pivot1 = home_values_pivot.pivot_table(
    values='HomeValue',
    index='MarketTier',
    aggfunc='median'
).round(0)

print("Median home value by market tier:")
display(pivot1)

# Same result using groupby
print("\nSame result using groupby:")
display(home_values_pivot.groupby('MarketTier')['HomeValue'].median().round(0))

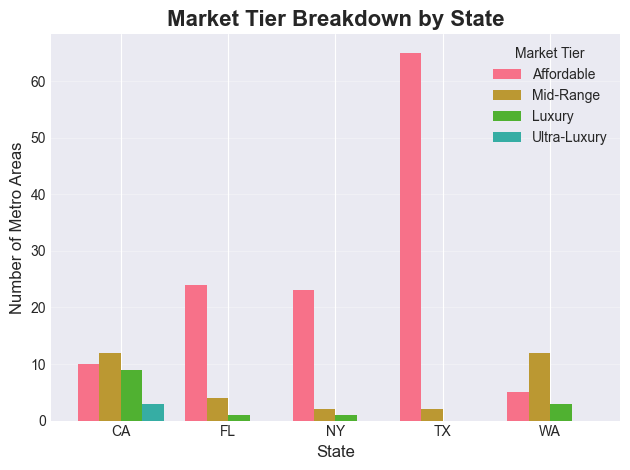

states_with_many = home_values_pivot['StateName'].value_counts()
states_to_show = states_with_many[states_with_many >= 5].index

pivot2 = home_values_pivot[home_values_pivot['StateName'].isin(states_to_show)].pivot_table(
    values='HomeValue',
    index='StateName',
    columns='MarketTier',
    aggfunc='count',   # count of metros in each cell
    fill_value=0,
    margins=True       # Add totals (like "Grand Total" row/column in Excel pivot)
)

print("Count of metros per state × market tier (states with 5+ metros):")
display(pivot2)

# Multiple aggregations: stats on home values by tier
pivot3 = home_values_pivot.pivot_table(
    values='HomeValue',
    index='MarketTier',
    aggfunc=['min', 'median', 'max', 'count']
).round(0)

print("Home value statistics by market tier:")
display(pivot3)

# Interactive Pivot Table Builder
pivot_table_widget(home_values_pivot)

# Get the last two years of data
one_year_ago = latest_date - pd.DateOffset(years=1)

latest_vals = home_values[home_values['Date'] == latest_date][['RegionName', 'StateName', 'HomeValue']].rename(
    columns={'HomeValue': 'Current'}
)
prior_vals = home_values[home_values['Date'] == home_values[home_values['Date'] <= one_year_ago]['Date'].max()][
    ['RegionName', 'HomeValue']
].rename(columns={'HomeValue': 'OneYearAgo'})

yoy = latest_vals.merge(prior_vals, on='RegionName', how='inner')

# Excel: =(Current - OneYearAgo) / OneYearAgo
yoy['YoY_Change_Pct'] = ((yoy['Current'] - yoy['OneYearAgo']) / yoy['OneYearAgo'] * 100).round(2)

print("Top 10 fastest-appreciating markets (YoY):")
display(yoy.nlargest(10, 'YoY_Change_Pct')[['RegionName', 'StateName', 'Current', 'YoY_Change_Pct']])

print("\nTop 10 declining markets (YoY):")
display(yoy.nsmallest(10, 'YoY_Change_Pct')[['RegionName', 'StateName', 'Current', 'YoY_Change_Pct']])

home_values_snap = home_values[home_values['Date'] == latest_date][['RegionName', 'StateName', 'HomeValue']]
rent_values_snap = rent_values[rent_values['Date'] == rent_values['Date'].max()][['RegionName', 'Rent']]

print(f"home_values metros: {len(home_values_snap)}")
print(f"rent_values metros: {len(rent_values_snap)}")
region_col = 'RegionName'
print(f"Metros in both: {len(set(home_values_snap[region_col]) & set(rent_values_snap[region_col]))}")

left_join = home_values_snap.merge(rent_values_snap, on='RegionName', how='left')
print(f"LEFT JOIN rows: {len(left_join)} (same as home_values: {len(home_values_snap)})")
print(f"Metros with rent data: {left_join['Rent'].notna().sum()}")
display(left_join.sort_values('HomeValue', ascending=False).head(8))

inner_join = home_values_snap.merge(rent_values_snap, on='RegionName', how='inner')
print(f"INNER JOIN rows: {len(inner_join)} (only metros in both datasets)")
display(inner_join.sort_values('HomeValue', ascending=False).head(8))

housing_combined = inner_join.copy()
housing_combined['Annual_Rent'] = housing_combined['Rent'] * 12
housing_combined['Price_to_Rent'] = (housing_combined['HomeValue'] / housing_combined['Annual_Rent']).round(1)

# Buy vs Rent signal
# Rule of thumb: P/R < 15 → better to buy; P/R > 20 → better to rent
housing_combined['Buy_vs_Rent'] = np.select(
    [
        housing_combined['Price_to_Rent'] < 15,
        housing_combined['Price_to_Rent'] > 20
    ],
    ['Lean Buy', 'Lean Rent'],
    default='Neutral'
)

print("Buy vs Rent Analysis by Metro:")
display(housing_combined[['RegionName', 'StateName', 'HomeValue', 'Rent', 'Price_to_Rent', 'Buy_vs_Rent']]
        .sort_values('Price_to_Rent', ascending=False)
        .head(12))

print("\nBuy vs Rent signal distribution:")
print(housing_combined['Buy_vs_Rent'].value_counts())

# Bar chart: Median home value by state (top 15 states)
top_states = (home_values_latest
              .groupby('StateName')['HomeValue']
              .median()
              .nlargest(15)
              .sort_values(ascending=True))

plt.figure(figsize=(10, 7))
top_states.plot(kind='barh', color='steelblue')
plt.title('Top 15 States by Median Home Value', fontsize=16, fontweight='bold')
plt.xlabel('Median Home Value ($)', fontsize=12)
plt.ylabel('State', fontsize=12)

# Add value labels — like Excel's data labels
for i, v in enumerate(top_states):
    plt.text(v + 5000, i, f'${v/1e6:.2f}M' if v > 1e6 else f'${v/1e3:.0f}K',
             va='center', fontsize=9)

plt.grid(axis='x', alpha=0.3)
plt.tight_layout()
plt.show()

# Grouped bar chart: Market tier breakdown for select states
select_states = ['CA', 'TX', 'FL', 'NY', 'WA']
tier_by_state = (
    latest_home_values_copy[latest_home_values_copy['StateName'].isin(select_states)]
    .groupby(['StateName', 'MarketTier'])
    .size()
    .unstack(fill_value=0)
)

tier_order = ['Affordable', 'Mid-Range', 'Luxury', 'Ultra-Luxury']
tier_by_state = tier_by_state.reindex(columns=[c for c in tier_order if c in tier_by_state.columns])

plt.figure(figsize=(12, 6))
tier_by_state.plot(kind='bar', width=0.8)
plt.title('Market Tier Breakdown by State', fontsize=16, fontweight='bold')
plt.xlabel('State', fontsize=12)
plt.ylabel('Number of Metro Areas', fontsize=12)
plt.legend(title='Market Tier', fontsize=10)
plt.xticks(rotation=0)
plt.grid(axis='y', alpha=0.3)
plt.tight_layout()
plt.show()

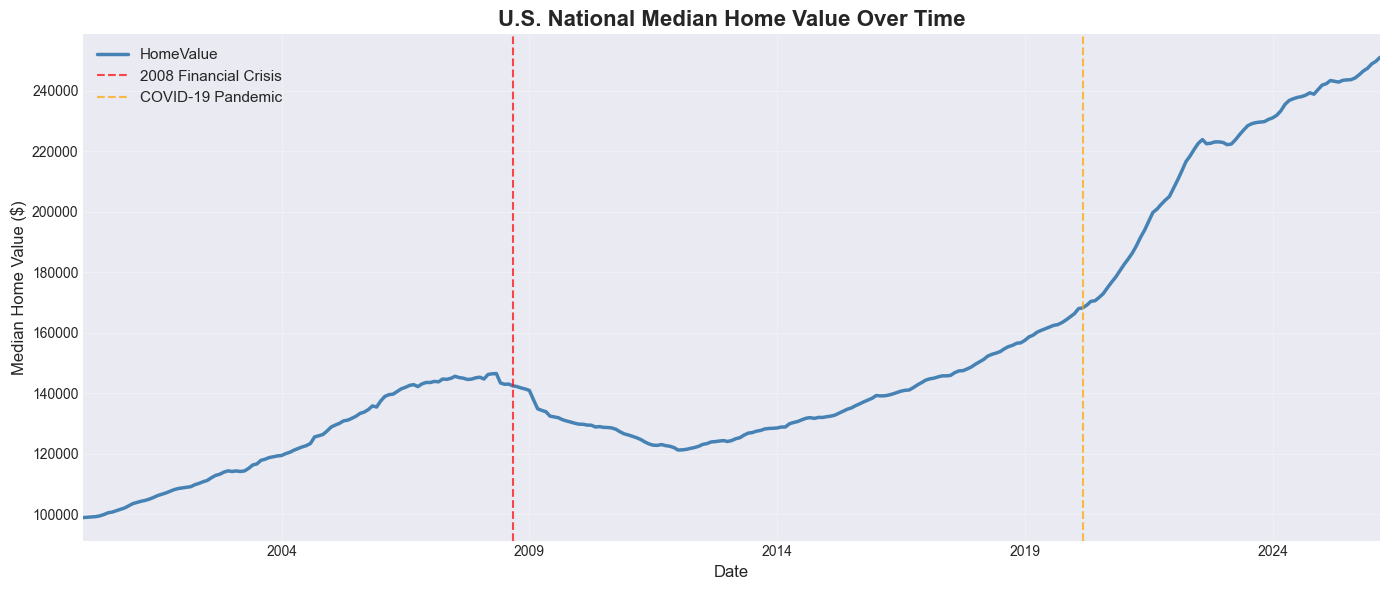

# Time series: National median home value over time
national_trend = home_values.groupby('Date')['HomeValue'].median()

plt.figure(figsize=(14, 6))
national_trend.plot(kind='line', linewidth=2.5, color='steelblue')

# Annotate key events (just like Excel text boxes)
plt.axvline(pd.Timestamp('2008-09-01'), color='red', linestyle='--', alpha=0.7, label='2008 Financial Crisis')
plt.axvline(pd.Timestamp('2020-03-01'), color='orange', linestyle='--', alpha=0.7, label='COVID-19 Pandemic')

plt.title('U.S. National Median Home Value Over Time', fontsize=16, fontweight='bold')
plt.xlabel('Date', fontsize=12)
plt.ylabel('Median Home Value ($)', fontsize=12)
plt.legend(fontsize=11)
plt.grid(True, alpha=0.3)
plt.tight_layout()
plt.show()

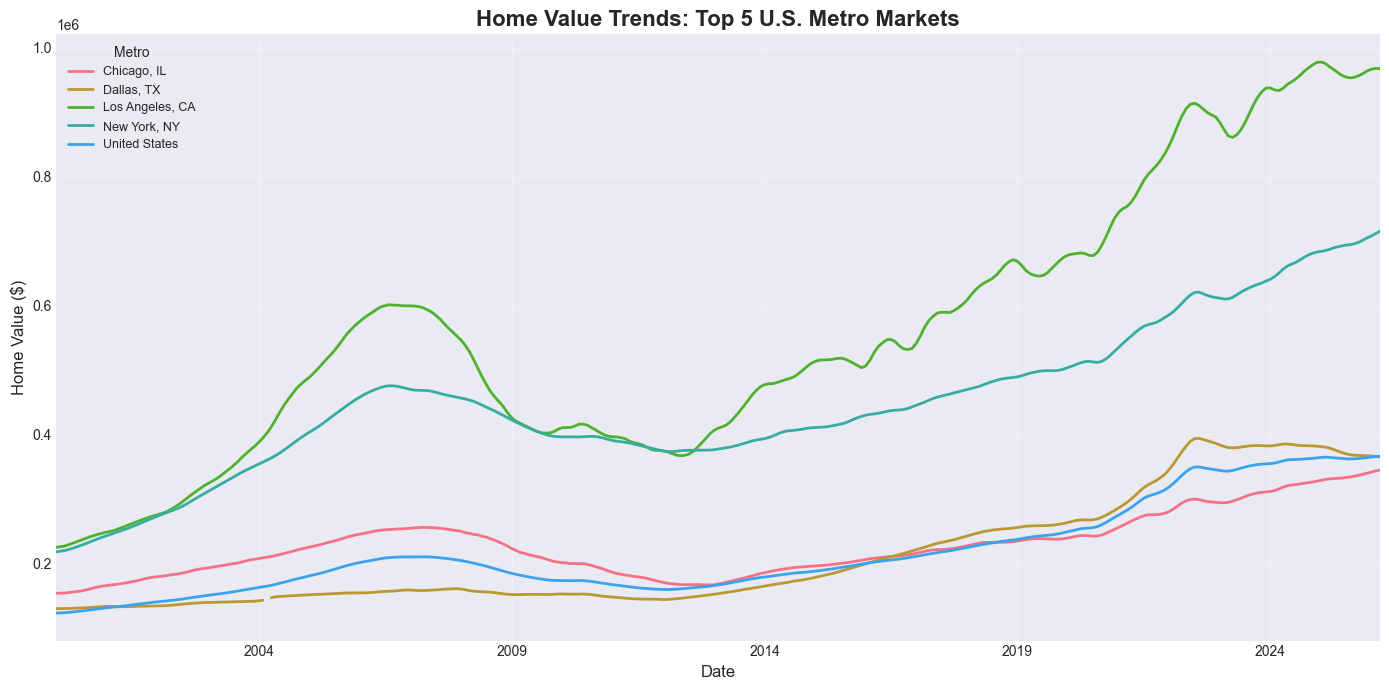

# Multiple lines: Home value trends for top 5 metros
top5_metros = home_values_latest.nsmallest(5, 'SizeRank')['RegionName'].tolist()
print(f"Top 5 metros by market size: {top5_metros}")

metro_trends = home_values[home_values['RegionName'].isin(top5_metros)].copy()
metro_pivot = metro_trends.pivot(index='Date', columns='RegionName', values='HomeValue')

plt.figure(figsize=(14, 7))
metro_pivot.plot(ax=plt.gca(), linewidth=2)
plt.title('Home Value Trends: Top 5 U.S. Metro Markets', fontsize=16, fontweight='bold')
plt.xlabel('Date', fontsize=12)
plt.ylabel('Home Value ($)', fontsize=12)
plt.legend(title='Metro', fontsize=9, loc='upper left')
plt.grid(True, alpha=0.3)
plt.tight_layout()
plt.show()

# Interactive: Pick any metros to compare
metro_trends_widget(home_values)

# Solution: Exercise 1 — State-Level Filtering and Aggregation

national_median = home_values_latest['HomeValue'].median()
print(f"National median home value: ${national_median:,.0f}")

tx_above_national = home_values_latest[
    (home_values_latest['StateName'] == 'TX') &
    (home_values_latest['HomeValue'] > national_median)
].sort_values('HomeValue', ascending=False)

print(f"\nTexas metros above national median: {len(tx_above_national)}")
display(tx_above_national[['RegionName', 'HomeValue']])

# Solution: Exercise 2 — Pivot Table

top8_states = latest_home_values_copy['StateName'].value_counts().head(8).index

pivot_ex2 = latest_home_values_copy[latest_home_values_copy['StateName'].isin(top8_states)].pivot_table(
    values='HomeValue',
    index='StateName',
    columns='MarketTier',
    aggfunc='mean',
    fill_value=0,
    margins=True
).round(0)

print('Average home value by state and market tier:')
display(pivot_ex2)

# Solution: Exercise 3 — Year-Over-Year Growth Chart

annual_median = home_values.groupby('Year')['HomeValue'].median()
annual_growth = annual_median.pct_change() * 100

fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(14, 5))

annual_median.plot(ax=ax1, marker='o', linewidth=2, color='steelblue')
ax1.set_title('Annual Median Home Value (U.S., All Metros)', fontweight='bold')
ax1.set_ylabel('Home Value ($)')
ax1.grid(True, alpha=0.3)

annual_growth.plot(ax=ax2, marker='o', linewidth=2, color='green', label='YoY growth')
ax2.axhline(y=0, color='red', linestyle='--', alpha=0.5, label='Zero growth')
ax2.set_title('Year-Over-Year Growth Rate (U.S., All Metros)', fontweight='bold')
ax2.set_ylabel('Growth Rate (%)')
ax2.legend()
ax2.grid(True, alpha=0.3)

plt.tight_layout()
plt.show()

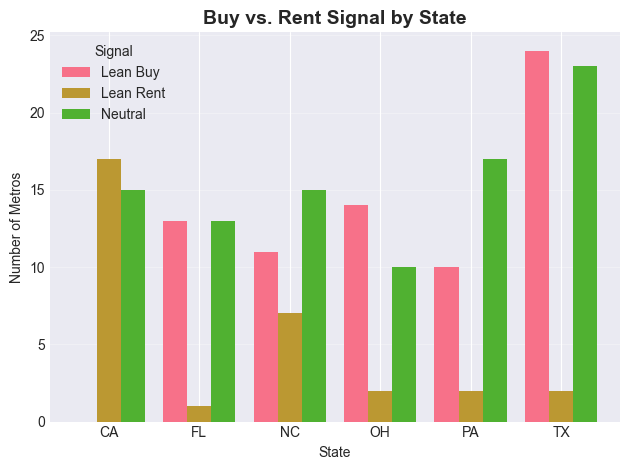

# Solution: Exercise 4 — Buy vs. Rent Analysis

top6 = housing_combined['StateName'].value_counts().head(6).index
ex4_data = housing_combined[housing_combined['StateName'].isin(top6)]

tier_counts = (
    ex4_data.groupby(['StateName', 'Buy_vs_Rent'])
    .size()
    .unstack(fill_value=0)
)

plt.figure(figsize=(12, 6))
tier_counts.plot(kind='bar', width=0.8)
plt.title('Buy vs. Rent Signal by State', fontsize=14, fontweight='bold')
plt.xlabel('State')
plt.ylabel('Number of Metros')
plt.xticks(rotation=0)
plt.legend(title='Signal')
plt.grid(axis='y', alpha=0.3)
plt.tight_layout()
plt.show()
